Jenkins Plugin - Control Plane

Overview

The Control Plane Jenkins Plugin manages Jenkins agent workloads on Control Plane dynamically — agents are provisioned when jobs enter the queue and deprovisioned when they go idle. Each agent runs as a Control Plane workload inside a GVC, connects back to the Jenkins controller over WebSocket, processes jobs, and is then removed automatically. This eliminates permanently-running build infrastructure. Agents scale up as job load increases and scale back to zero when idle.

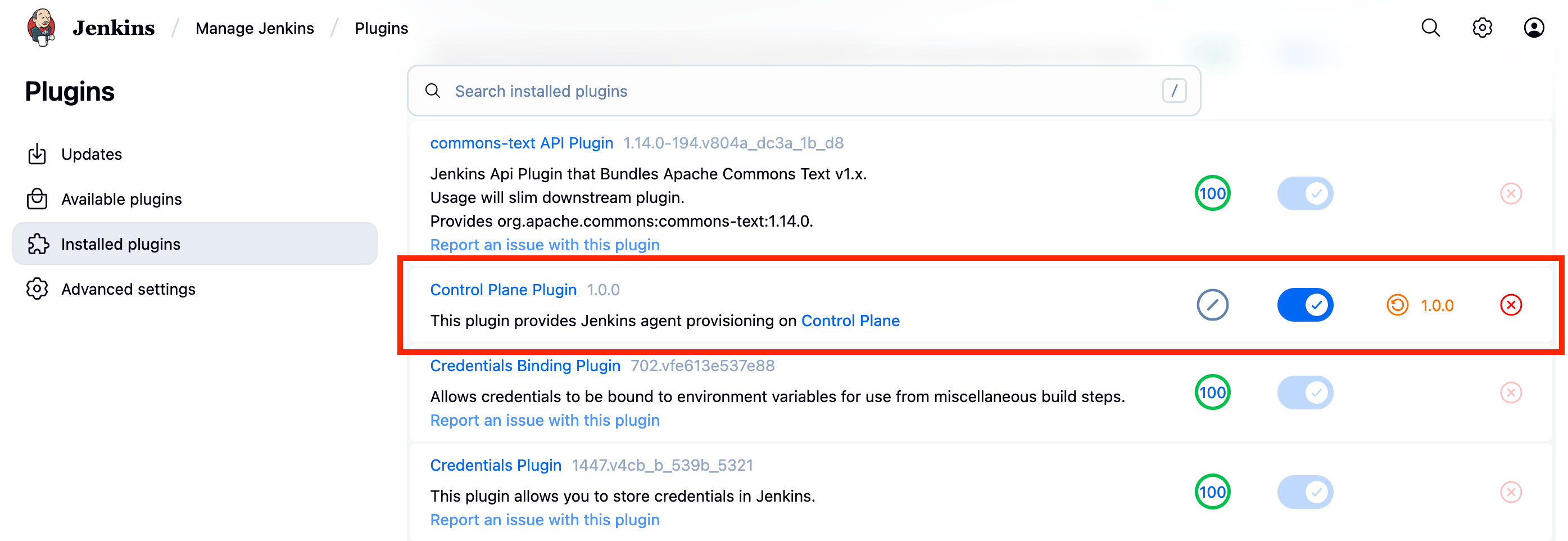

Control Plane Plugin installed in Jenkins

Prerequisites

A running Jenkins controller (version 2.462.3 or later)
A Control Plane account and organization
An API key with the following permissions on your organization:
- List orgs
- List GVCs
- List volume sets (in the configured GVC)
- List identities (in the configured GVC)
- Read, create, and delete workloads (in the configured GVC)
A GVC with exactly one location — the plugin deploys one agent replica per cloud configuration, and multi-location GVCs are not supported

Installation

The plugin is distributed as an .hpi file. You can either build it from source or use the pre-built artifact included in the repository.

Option A — Build from source

Clone the repository:

git clone git@github.com:controlplane-com/cpln-jenkins-plugin.git

Install Maven and Java 21.
From the project root, build the plugin:

mvn clean install

The .hpi file will be generated at:

target/cpln-jenkins-plugin/cpln-jenkins-plugin-2.0.0.hpi

Option B — Use the pre-built artifact

A pre-built .hpi is included in the repository under docs/artifacts/ for convenience. Replace it with a build from source before deploying to production.

Installing the HPI into Jenkins

Go to Manage Jenkins → Plugins → Advanced.
In the Deploy Plugin section, click Choose File and select the .hpi file.
Click Deploy.
Restart the Jenkins controller and log back in.
Go to Manage Jenkins → Plugins → Installed Plugins and verify Control Plane Plugin is listed and enabled.

After installation, enable WebSocket agent connections:

Go to Manage Jenkins → Security.
Under Agents, set the TCP port for inbound agents to Random.
Save.

Configuration

Disable the built-in executor

Before creating cloud configurations, prevent Jenkins from running jobs on its own node:

Go to Manage Jenkins → Nodes → Built-In Node → Configure.
Set Number of executors to 0.
Save.

This ensures all jobs are routed to cloud agents rather than the controller.

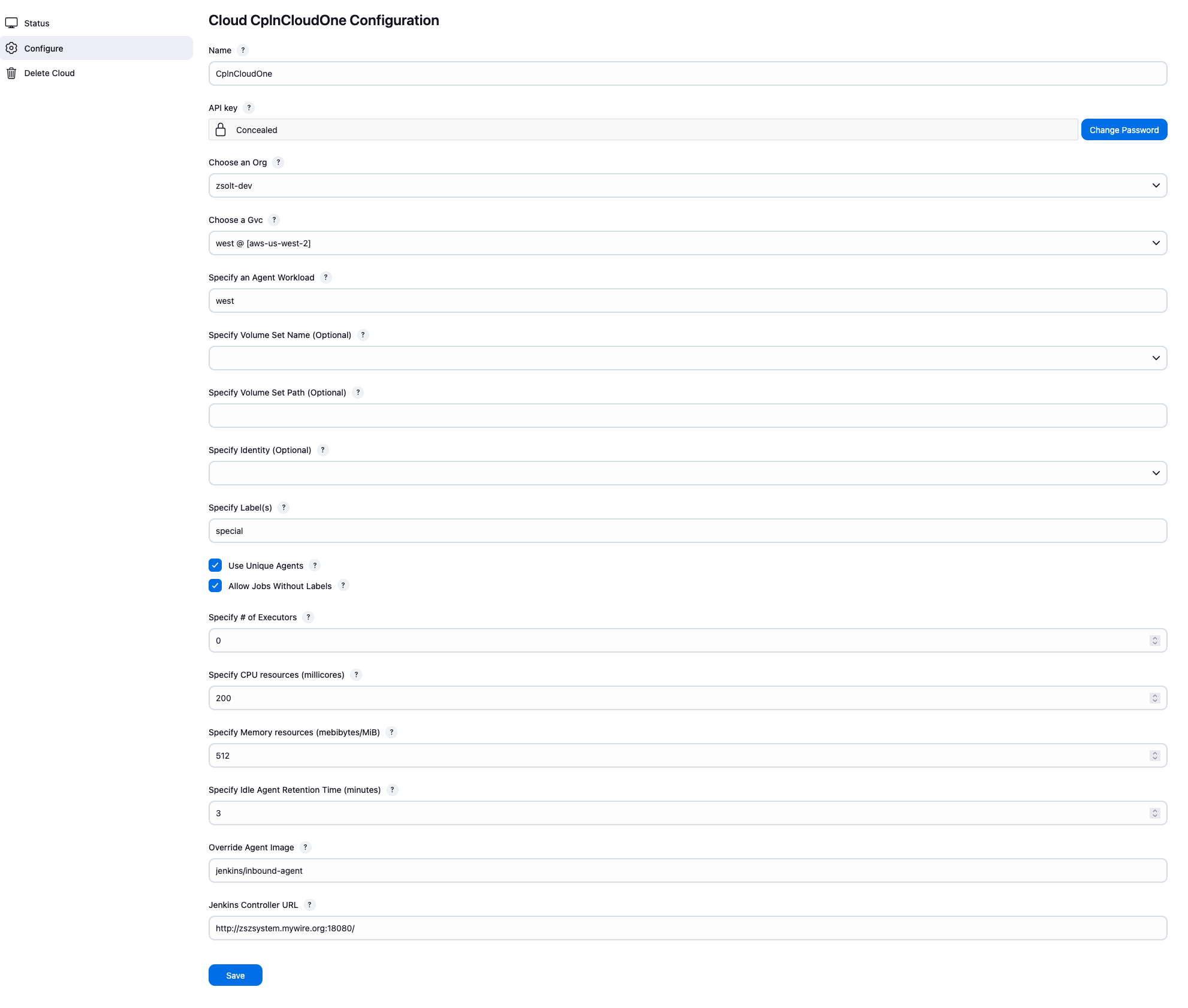

Create a cloud configuration

Go to Manage Jenkins → Clouds → New cloud.
Enter a name (e.g., cpln-us-west) and select Control Plane as the cloud type, then click Create.
Paste your API Key. The plugin will automatically populate the Org field with the available organizations.
Select the Org — this will populate the GVC dropdown.
Select the GVC. Only single-location GVCs are supported.
Set the agent workload name (e.g., west-generic). This is the name used when creating the agent workload in your GVC.

Cloud configuration options

Setting	Description
Volume Set (optional)	A shared volume set from the selected GVC. Must be of type `shared`. If set, the Volume Set Path must also be set.
Volume Set Path (optional)	Mount path inside the agent container (e.g., `/mnt/workspace`).
Identity (optional)	A workload identity from the selected GVC, assigned to the agent workload for access to Control Plane secrets or cloud resources.
Labels	Space-separated labels used for job routing (e.g., `cpln linux-build`). Pattern: `()\|(([a-z][-a-z0-9]+)( [a-z][-a-z0-9]+)*)`
Allow jobs without labels	When checked, unlabeled jobs can run on this cloud. When unchecked, only jobs with a matching label will be picked up.
Number of executors	Maximum concurrent jobs per agent. Set to `0` to disable the cloud instance.
Unique agent workloads	When checked, Jenkins provisions a dedicated agent workload per job instead of sharing agents across concurrent jobs. See Unique Agents below.
CPU / Memory	Resources for each agent workload. Defaults: 200 millicores / 512 MiB. Minimums: 50m CPU / 128 MiB memory.
Idle timeout	Minutes an agent can be idle before being deprovisioned. Minimum 1 minute.
Jenkins inbound agent image	Docker image for the agent. Defaults to `jenkins/inbound-agent`. Must be compatible with standard Jenkins agent environment variables.
Jenkins controller URL	The URL the agent workload uses to reach the Jenkins controller (must be externally resolvable from the GVC location).

The Jenkins inbound agent is a Java process. Setting CPU below 50m or memory below 128 MiB will cause agent startup failures or OOM kills. Values of 200m CPU and 256 MiB memory or higher are recommended.

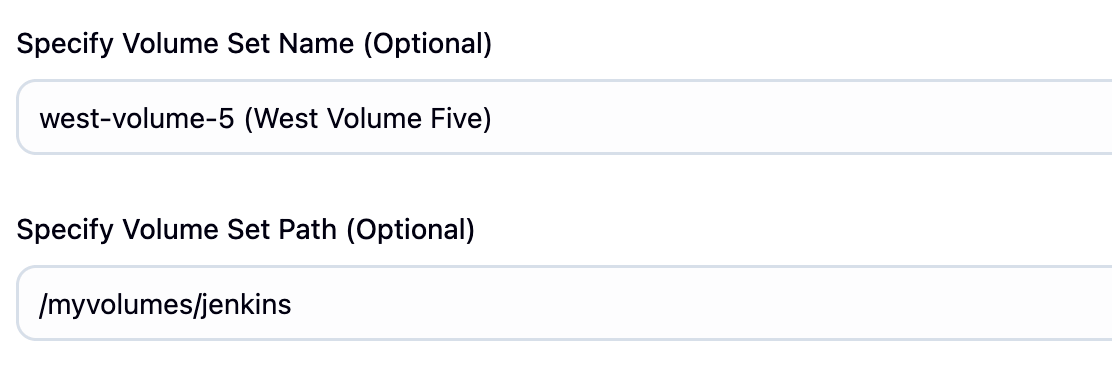

Volume sets

When using a volume set, it must be of type shared. Volumes of type ext4 or xfs are not supported with standard workloads.

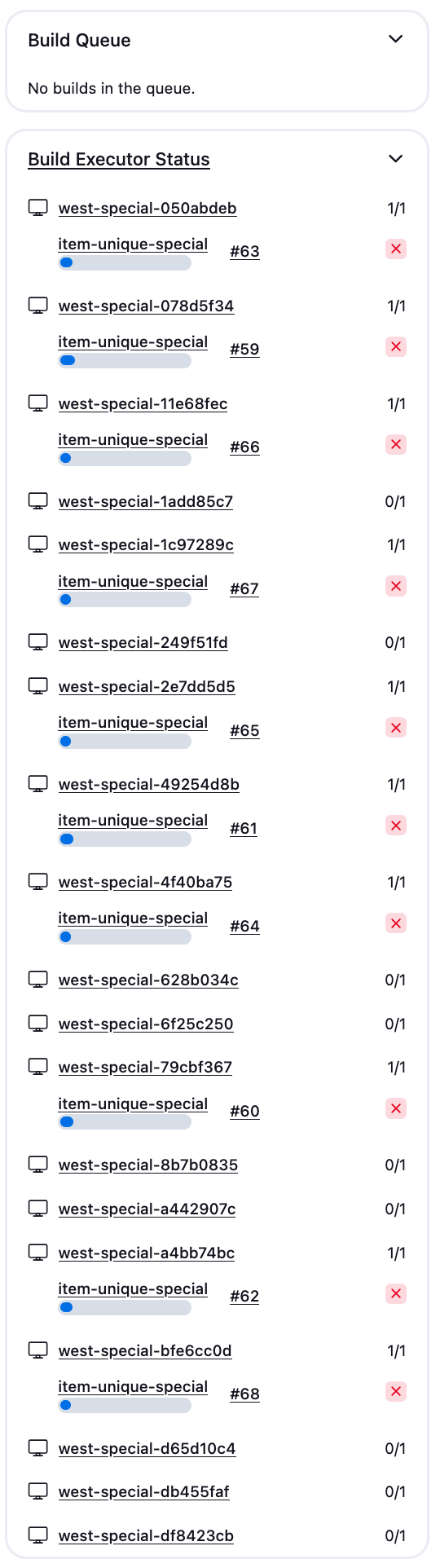

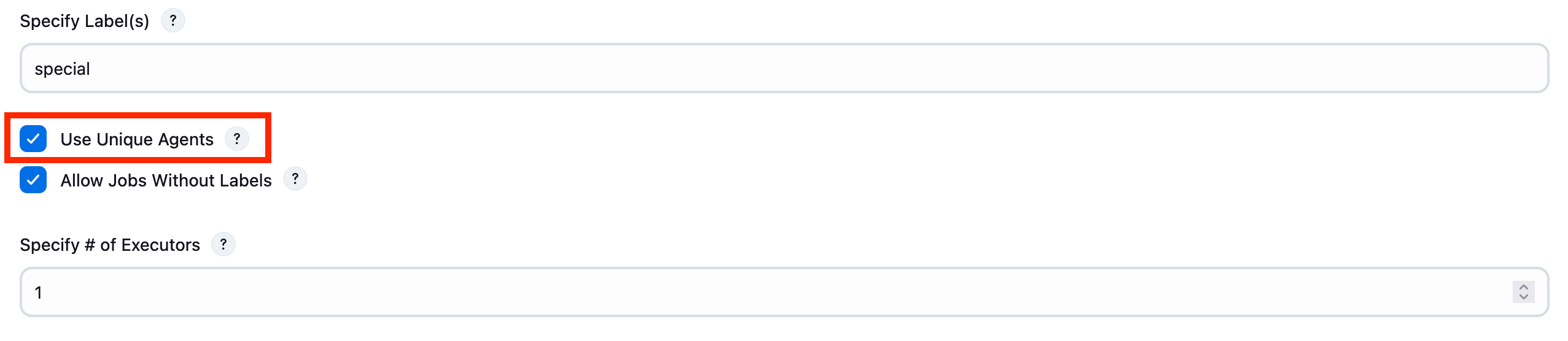

Unique agents

When Unique agent workloads is enabled, Jenkins provisions a dedicated agent workload for each job instead of routing multiple jobs to a shared agent. This allows jobs to run fully concurrently regardless of the per-agent executor limit. Set the cloud’s Number of executors to 1 when using unique agents so each agent processes exactly one job at a time.

Some over-provisioning of agents is expected on burst loads, short job durations, or when agents take time to start. Unused agents are cleaned up automatically after the idle timeout expires.

How It Works

Agent lifecycle

A job enters the Jenkins queue.

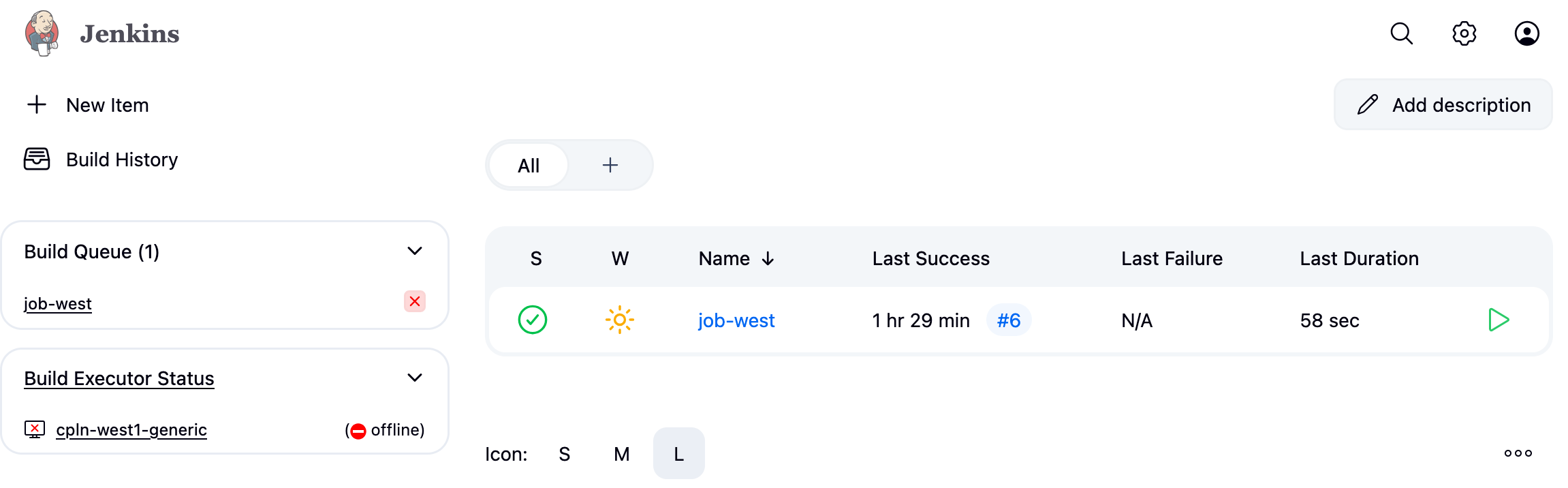

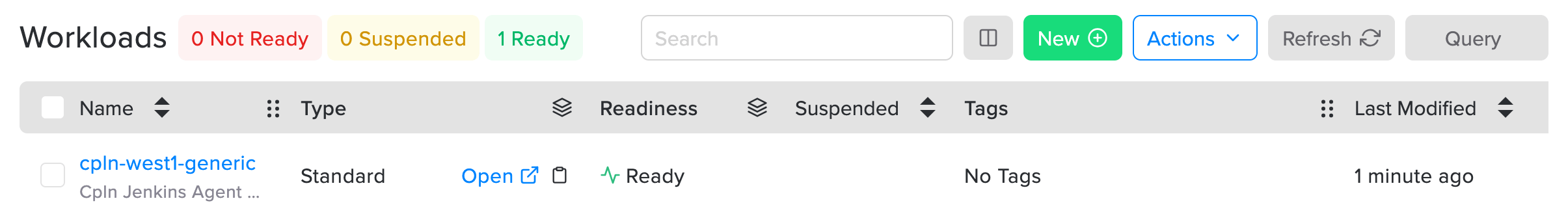

The plugin provisions a new agent workload in the configured GVC.
The workload starts, connects back to the Jenkins controller over WebSocket using the configured controller URL.
Once connected, the agent picks up the queued job and processes it.
After the job completes, the agent remains idle for the configured idle timeout period.
If no new jobs arrive within that window, the plugin deletes both the Jenkins agent and the corresponding Control Plane workload.

Agent container properties

Agent workloads receive standard Jenkins environment variables (JENKINS_URL, JENKINS_AGENT_NAME, JENKINS_SECRET, etc.) as container properties, enabling the inbound agent to authenticate and connect automatically. The running agent workload is also visible directly in the Control Plane console:

Label-Based Job Routing

The plugin integrates with Jenkins’ standard label system, letting you control exactly which cloud handles each job. This is especially useful in multi-cloud environments.

Configuring labels

Set labels in the Labels field of a cloud configuration (space-separated). Example: cpln linux-build.

Restricting a job to Control Plane

Open the job configuration.
Check Restrict where this project can be run.
Enter a label expression matching one of the cloud’s labels (e.g., cpln).

Multi-cloud example

Cloud	Labels	Allow unlabeled jobs
Control Plane	`cpln`	No
Kubernetes	`k8s`	No
EC2	`ec2`	Yes

Job label expression	Runs on
`cpln`	Control Plane only
`k8s`	Kubernetes only
(no label)	EC2 (only cloud accepting unlabeled jobs)

Pipeline jobs

Use the agent directive with a label expression:

pipeline {
    agent { label 'cpln' }
    stages {
        stage('Build') {
            steps {
                sh 'echo "Running on Control Plane agent"'
            }
        }
    }
}

To target different clouds for different stages:

pipeline {
    agent none
    stages {
        stage('Build on CPLN') {
            agent { label 'cpln' }
            steps {
                sh 'echo "Running on Control Plane"'
            }
        }
        stage('Build on K8s') {
            agent { label 'k8s' }
            steps {
                sh 'echo "Running on Kubernetes"'
            }
        }
    }
}

Automatic Cleanup and Health Monitoring

The plugin includes several background mechanisms to recover from failures and prevent resource leaks.

Workload reconciler

Runs every 60 seconds to detect and remove orphan workloads — Control Plane workloads that have no corresponding Jenkins node. A configurable grace period prevents premature cleanup of workloads that are still starting up.

Stuck agent detection

Detects agents that are online but have stalled JVMs (high response latency, no channel activity). Agents that remain stuck for the configured grace period with no active builds are cleaned up automatically.

Stalled build detection

Detects builds where the job script finished but Jenkins never received the completion event. When log output stops, the channel becomes stale, and no progress is observed for an extended period, the plugin forces build interruption and cleans up the agent. These mechanisms handle scenarios including:

Handshake failures
OOM kills
Fast exits before the agent registers
Abnormal WebSocket terminations
Controller restarts
JVM stalls from CPU overload

Important Notes

Removing an agent from Jenkins also removes the corresponding workload from the Control Plane GVC.
Forcefully removing a workload from Control Plane (outside Jenkins) may cause the plugin to recreate it if there are jobs in the queue for that cloud configuration.
Unlabeled jobs may be picked up by any cloud instance with Allow jobs without labels enabled. If no agents are running, one will be provisioned to handle the job.
Jobs with no matching cloud remain queued indefinitely until either the cloud configuration is updated or the job’s label requirement is changed.
Agent workloads use WebSocket to connect to the Jenkins controller. The controller must be reachable over HTTP/HTTPS from the GVC’s location.
TLS between controller and agents is not configured by the plugin itself. Refer to standard Jenkins TLS documentation for securing the controller endpoint:
- Enabling HTTPS in Jenkins (Baeldung)
- Jenkins community HTTPS discussion
Provisioning cooldown (default: 60 seconds) prevents over-provisioning when agents take time to connect. For unique agents, this stops Jenkins from creating duplicate agents for the same job. The cooldown clears automatically once an agent successfully connects.
Jenkins provisioning parameters MARGIN, MARGIN0, and MARGIN_DECAY can be used to fine-tune load-based provisioning behavior. Consult the Jenkins documentation for details.

External References

Control Plane Documentation

Control Plane platform documentation

Jenkins Documentation

Official Jenkins documentation

Jenkins Inbound Agent

Default agent Docker image used by the plugin

Plugin Repository

Source code, issues, and releases
